Pipe Coping Template Generator
Online Pipe Coping / Notching Utility for metal fabricators. Generate printable saddle joint templates instantly.
Pipe Coping Template GeneratorOnline Pipe Coping / Notching Utility for metal fabricators. Generate printable saddle joint templates instantly.
Built by fabricators, for fabricators. Get precise templates in seconds.
Generate precise cut curves using real-time 3D geometry. Every calculation is based on true cylindrical intersection mathematics.
Export full-scale templates ready for printing. Includes grid lines and cut marksfor easy shop floor use.
Calculate up to 3 intersecting pipes simultaneously. Handle complex multi-branch connections with ease.
Fully responsive design works on desktop, tablet, and mobile. Take it to the shop floor or use it in the office.

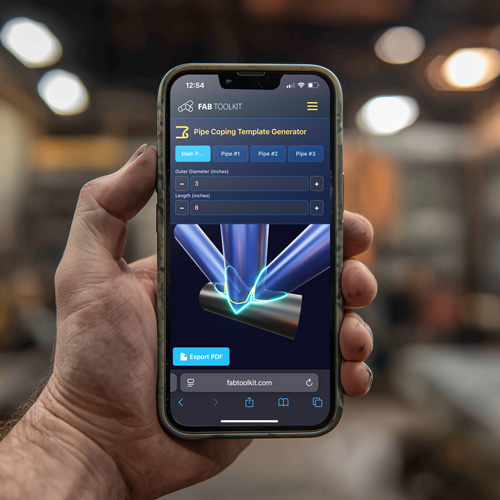

See your pipe intersections in real-time 3D. Rotate, zoom, and inspect from any angle before cutting.
No waiting, no complicated setup. Adjust parameters and see results immediately in your browser.
Enter the diameter and length of your main pipe using the intuitive controls.
Add intersecting pipes and adjust their diameter and rotation angles to match your design.
Inspect the intersection in real-time 3D. Rotate and zoom to verify your design.

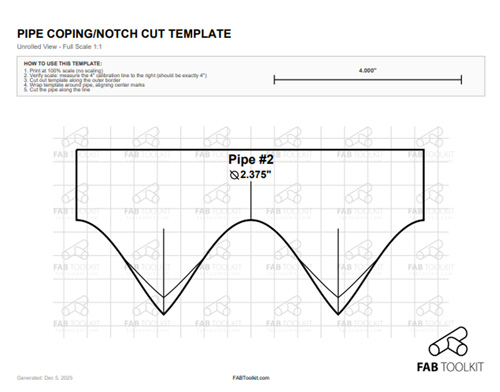

Download full-scale PDF templates with grid lines ready for printing and cutting.
Design and fabricate steel structures, handrails, roll cages, and custom frames with precise pipe joints.
Create accurate templates for TIG, MIG, and stick welding applications. Reduce fitting time and waste.
Calculate intersections for HVAC ductwork, exhaust systems, and industrial pipe assemblies.
Teach students pipe fitting, layout techniques, and fabrication principles with visual examples.
Build custom exhaust systems, roll cages, and chassis components with professional-grade accuracy.
Design custom machinery, fixtures, and equipment with complex tubular structures.
Free to use. No signup required. Get your templates in minutes.
Launch Calculator Now →
